Description

This outboard motor is made of high-quality aluminum alloy material, which is a good choice for you to enjoy your cruise. The excellent engine performance can bring you a comfortable sailing experience, as well as convenient ignition and flame failure devices to protect your safety. All you need to do is install it in the stern of your boat, and you can enjoy a fast and easy-to-operate water journey!

Details

Locking Handle: It locks the connection between the anechoic cover and the base and also makes it easy for you to open the housing and check the internal engine at any time.

Cooling Water Outlet: You can determine whether the water pump is working properly by checking whether it is producing water, to promptly repair the engine if it may malfunction.

Ergonomic Handle: The rubberized throttle control handle increases friction and has a non-slip effect, making it easier to use.

Fliter: The filter above the propeller helps to effectively filter impurities from the water, allowing the boat to sail more smoothly.

Application

This outboard engine is suitable for inflatable boats, iron boats, plastic boats, fiberglass boats, wooden boats, etc. with a stern plate height of 17.72-21.65 inches (the length of the ship is greater than 3 meters, the net weight of the ship is greater than 60kg, the load of the ship is less than 1000kg). It is widely used in fields such as fisheries, aquaculture, and outdoor exploration.

Specifications

Color: Black

Material: Aluminum Alloy, Rubber

Displacement: 246CC

Cylinder: 2

Max. Output: 13.2kw

Horsepower: 18HP

Cooling System: Water-cooling

Ignition System: CDI

Control System: Tiller Control

Starting System: Manual Start

Trim and Tilt System: Manual Tilt

Gasoline Type: #92 Gasoline

Mixing Ratio: Gasoline: Two-stroke Oil (25: 1 Break-in Period; 50: 1 After Break-in Period)

Rotation (r/min): 4500-5500

Speed: 25-30 km/hour(15.53-18.64 miles/h)

Gear Positions: F-N-R

Gear Ratio: 2.08(27:13)

Number of Propeller Blades: 3

Adaptive Transom Plate Height: 45-55cm/17.72-21.65inch

Bore Stroke: 5.6*5cm/ 2.2*1.97inch

Recommended Propeller Range: 3-9 1/4"x8”

Fuel Consumption: Max. 4.5L/1.18gal/h

Joystick Length: 39.5cm/15.55inch

Handle Length: 13cm/5.12inch

Propeller Diameter: 20cm/8inch

Standard Fuel Tank Capacity (External Oil Tank): 24L/ 6.34Gal

Silencer Cover Size(L*W): 57*27cm/22.44*10.63inch

Product Height: 120cm/47.24inch

Package Size: 131*71*40cm/51.57*27.95*15.75inch

Net Weight: 42.5kg/93.7 lbs

Gross Weight: 48.1kg/106.04 lbs

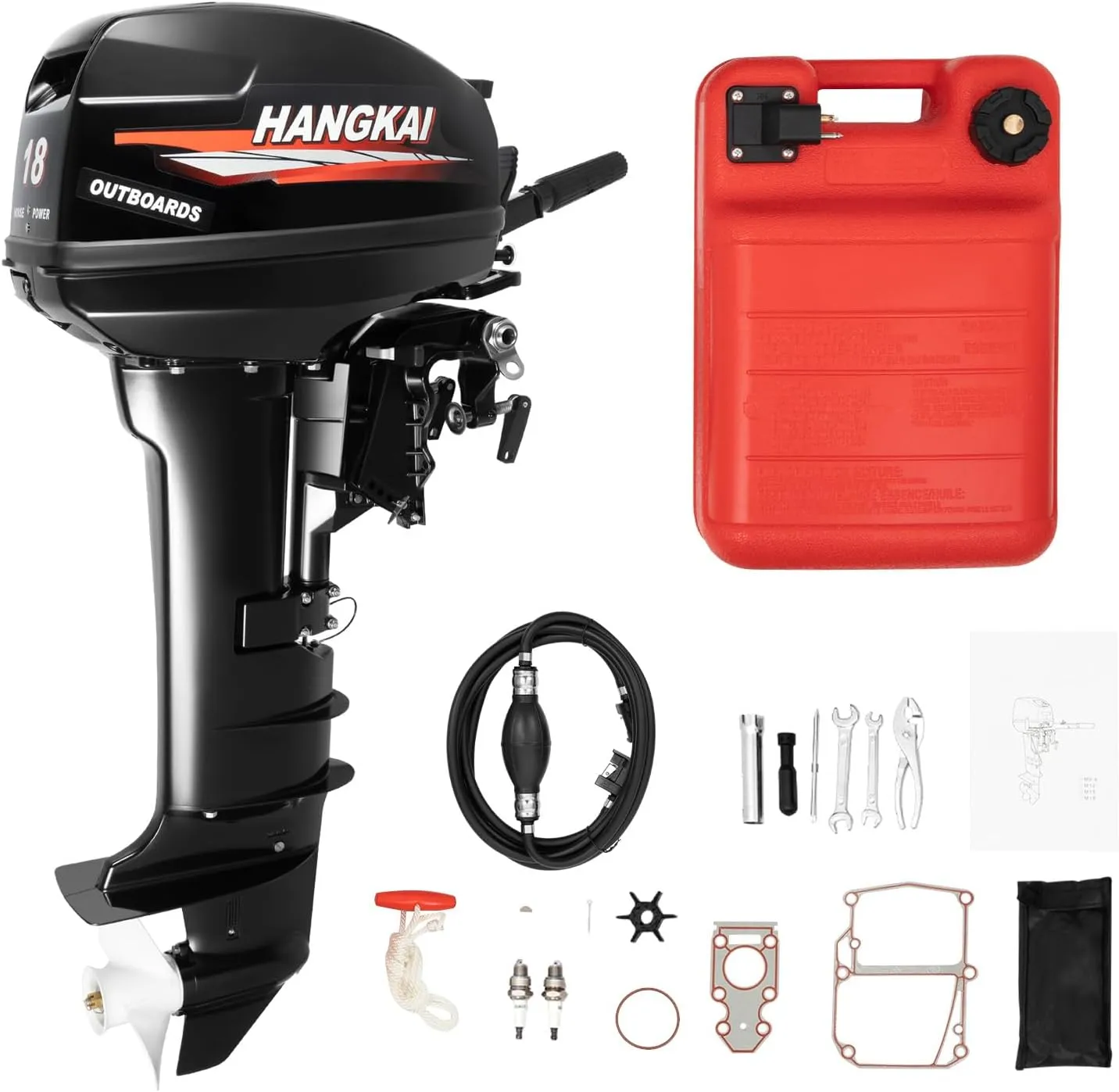

Package Included

1* Outboard Engine

1* Oil Pipe

1* Fuel Tank

1* Chinese User Manual

1* Tool Kit

All Needed Accessories

Notes

1. Please note that this product must be started in water, and it is not allowed to start the engine on shore.

2. Please note that the two-stroke outboard engine must use a mixture of gasoline and two-stroke engine oil. In addition, gasoline and oil must be stirred evenly.

3. Please note that the running-in period is about 10 hours. During the running-in period, do not drive with a high throttle.

4. The ratio of gasoline to oil during the running-in period of the new engine is 25:1. After the running-in period, the volume ratio is 50:1.

5. Replace the gear oil after the running-in period, and the second replacement time is after 100 hours or about 6 months.

6. When the outboard motor is started, loosen the exhaust screw on the fuel tank cover counterclockwise. The emergency flameout rope shall be inserted, and the other end shall be placed on the wrist or belt.

7. When there is no water outlet from the engine, please stop using it immediately, then check the water pump impeller or outlet for blockage.

8. Please note that the exact speed of travel depends on the shape of your boat, weight, water, wind, and other factors.

9. Please allow the slight color difference caused by the shooting light and 1-3 cm error due to manual measurement, and make sure you do not mind before ordering.
