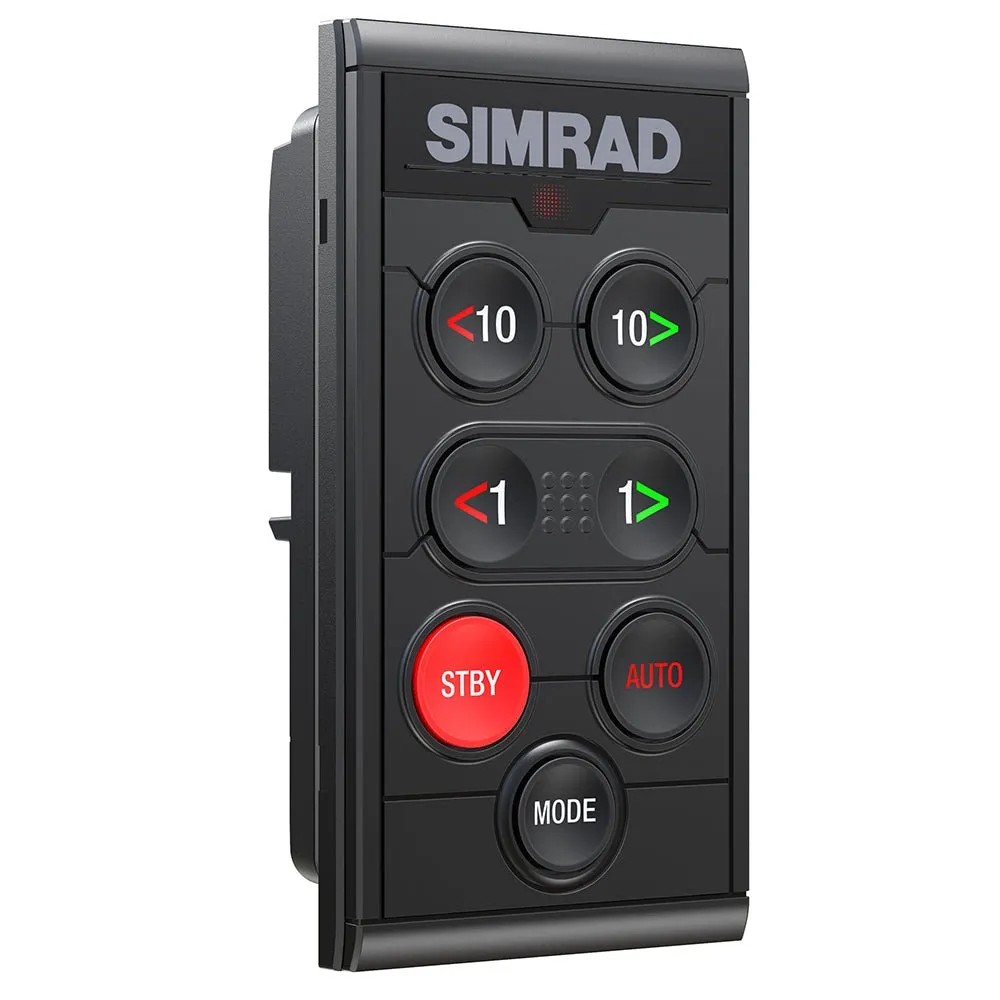

OP12 Autopilot Controller

The OP12 wired remote seamlessly integrates with Simrad autopilot systems to provide intuitive mode control, course adjustments, and power steering. Designed to complement the low-profile design of Simrad glass bridge instruments and displays, this remote can be combined with the IS42 Colour Instrument Display to create a standalone autopilot controller, or used as a dedicated autopilot keypad for GO, NSS and NSO evo2 multifunction displays.

Features:

• Intuitive operation
• Easy installation

• Combine with an IS42 display for full autopilot control
• Compatible with Simrad AC12, AC42, NAC-2 and NAC-3 autopilot computers

• Use alongside NSS & NSO evo2 MFD's as an additional Autopilot Controller
• Low-profile glass helm design

• Low power consumption
• Certified NMEA 2000® connectivity

Specifications:

• Dimensions: 60 x 115 x 32mm (2.4" x 4.5" x 1.3")
• Weight: 0.12kg (0.3lbs)

• Power Consumption: 1.4 Watts
• Network Load: 3 LEN

• Color: Black
• Environmental Protection, Waterproof: Waterproof rating: IPx7

• Environmental Protection, Humidity: Up to 95% RH
• Compass Safe Distance: 300mm (1.0")

• Temperature Operating: -15 to 55°C (5°F to 131°F)
• Temperature Storage: -30 to 70 °C (-22 to 158 °F)

Specifications:

• Type: Parts
• Box Dimensions: 5"H x 6"W x 9"L WT: 0.8 lbs
• UPC: 9420024155127
