- Ramset 1000 UL 1/2 HP Slide Gate Operator
- Max Gate Size 40'
- Max Gate Weight 1000 lbs
- Motor Continuous duty. 1/2 Hp, 120VAC, 50/60 hz
- Note: The Per UL325-2016 all gate operators sold in the USA after February 2016 will be required to have a monitored safety photo cell to prevent accidental crushing or entrapment.
Ramset 1000 UL 1/2 HP Slide Gate Operator
Intelligent Control Board: a reliable way to open and close gates continuously Surge Protection: gas discharge filter and MOV increases protection against surges and lightning strikes
Electronic Reversing Device (ERD): innovative system that monitors current fluctuation; self-adjusting and reverses when obstruction is sensed
Electronic Inputs: phone entry systems, three push button stations, radio receivers, fire boxes, digital key pads, loop detectors, photo cells, etc.
Automatic Timer: gate closes automatically after desired amount of time (0, 5, 10, 15, 30, 45 or 60 seconds)
Ramset 1000 Sliding Commercial Gate Operators
GENERAL SPECIFICATIONS: Max Gate Size 40'
Max Gate Weight 1000 lbs.
Motor Continuous duty. 1/2 Hp, 120VAC, 50/60 hz
Emergency Release Footpedal Release, Battery Backup System, Power Inverter
Dimensions H:26" - L:14 1/2" - W:16 1/2"
Travel Speed 1' Per Second

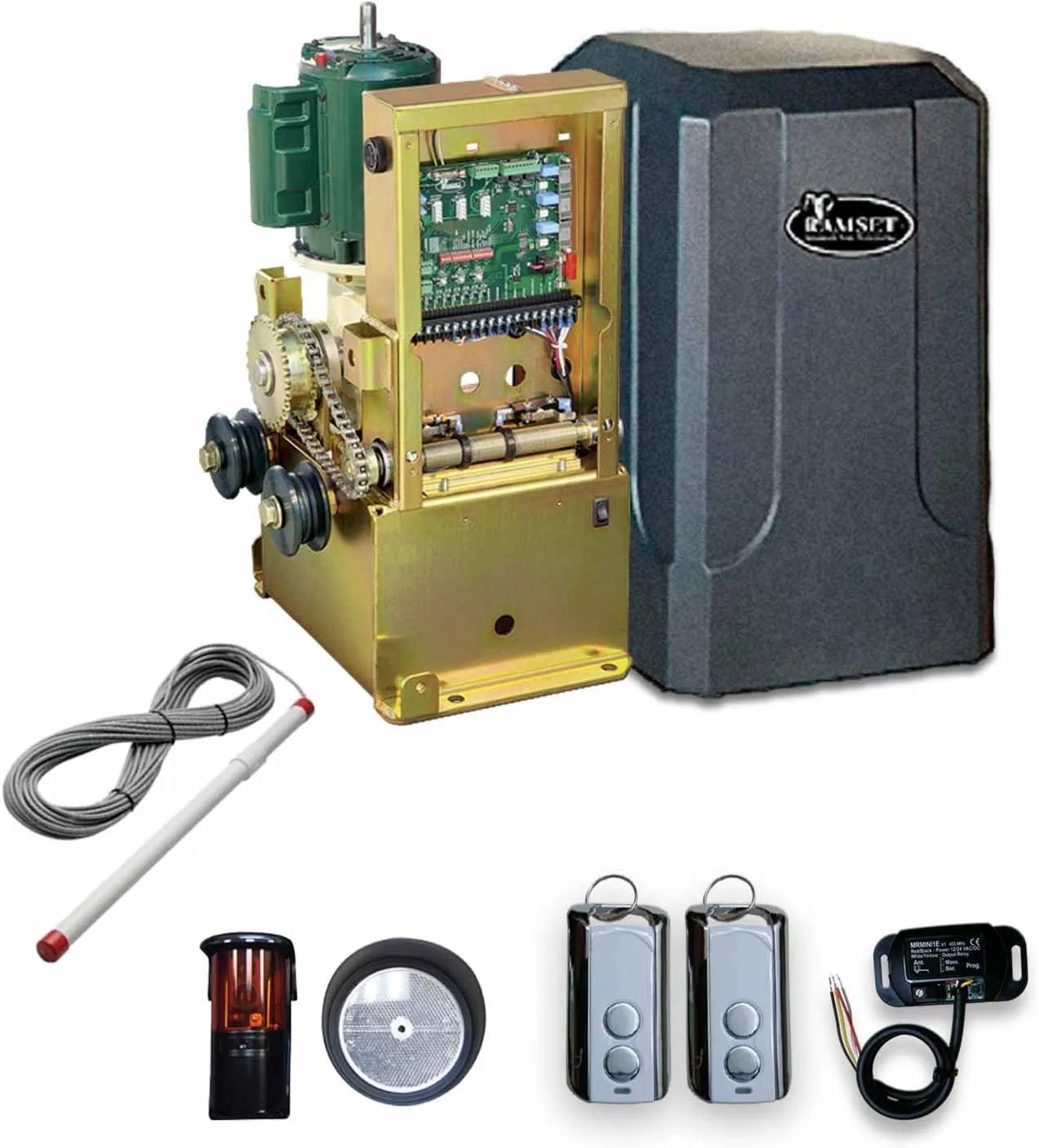

Ram 1000 gate Openers kit 3
Include:
Ram 1000 gate operator
Receiver 433 MHz range of up to 150 feet
Two Mini-Remote Control model 433 MHz 2-Button
BFT Photo Cell / Photo Eye with Reflector
EMX CarSense 202 Slim Outdoor Buried Driveway Sensor 50ft
