- ✅ 【High Quality Materials】 This outboard motor high-quality aluminum alloy, combined with painting technology, has excellent corrosion resistance, wear resistance, heat resistance, impact resistance, deformation resistance and other properties. You can rest assured that it can be used in water. The rubberized throttle control handle increases friction and has a non-slip effect, making it easier to use.
- ✅ 【Excellent Performance】 The 2-stroke 12 HP gas boat motor delivers 8-30km/h speed, giving you a comfortable and labor-saving sailing experience. In addition, the three-blade propeller and streamlined design reduce water resistance and provide more power during operation.
- ✅ 【Multi Speed Control】 The boat motor has three gears: forward, neutral and reverse. By turning the throttle handle, you can realize stepless speed change or cruise at a constant speed, allowing you to enjoy different cruising experiences according to your needs. The filter above the propeller helps to effectively filter impurities in the water, making the boat sail more smoothly.
- ✅ 【High Safety】 The water-cooling system helps to cool the engine and prolong its service life. Suspension tilt adjustment pegs can be used to adjust the boat's sailing attitude to keep it sailing smoothly. Anti-swirl plates minimize swirls for safer sailing. Emergency flame out cord helps you turn off the flame quickly for safer use. Stern plate clamping bolts can fix it firmly on the boat.
- ✅ 【Low Fuel Consumption & Low Noise】 This boat engine adopts advanced CDI ignition system and consumes only 1.18 gallons/hour, which not only saves fuel, but also reduces the cost, which is economical. The muffler absorbs fan noise through internal sound absorbing materials, bringing you a quieter sailing experience.
Application
This outboard engine is suitable for inflatable boats, iron boats, plastic boats, fiberglass boats, wooden boats, etc. with a stern plate height of 17.32 inches or less. It is widely used in fields such as fisheries, aquaculture, and outdoor exploration.
Specifications
Color: Black
Material: Aluminum Alloy, Rubber
Displacement: 169CC
Cylinder: 2
Horsepower: 12HP
Cooling System: Water-cooling
Ignition System: CDI
Control System: Tiller Control
Starting System: Manual Start
Trim and Tilt System: Manual Tilt
Gasoline Type: #92 Gasoline
Mixing Ratio: Gasoline: Two-stroke oil (25: 1 Break-in Period; 50: 1 After Break-in Period)
Rotation (r/min): 4500-5500
Speed: 8-30 km/hour(4.97-18.64 miles/h)
Gear Positions: F-N-R
Gear Ratio: 2.08(27:13)
Number of Propeller Blades: 3
Adaptive Transom Plate Height: ≤44cm/17.32inch
Suitable Tailboard Thickness: 2.5-4.5cm/ 0.98-1.77inch
Bore Stroke: 5*4.3cm/ 1.97*1.69inch
Recommended Propeller Range: 3-9 1/4"x8”
Fuel Consumption Rate: About 4.5L/1.18gal/h
Joystick Length: 35cm/13.78inch
Handle Length: 15cm/5.9inch
Propeller Diameter: 20cm/8inch
Oil-pumping Pipe Length: 3.05m/10ft
Standard Fuel Tank Capacity (External Oil Tank): 24L/ 6.34Gal
Silencer Cover Size(L*W): 40*26cm/15.75*10.24inch
Product Height: 102cm/40.16inch
Package Size: 107*67*41cm/ 42.13*26.38*16.14inch
Net Weight: 29.9kg/ 65.92 lbs
Gross Weight: 34.4kg/ 75.84 lbs

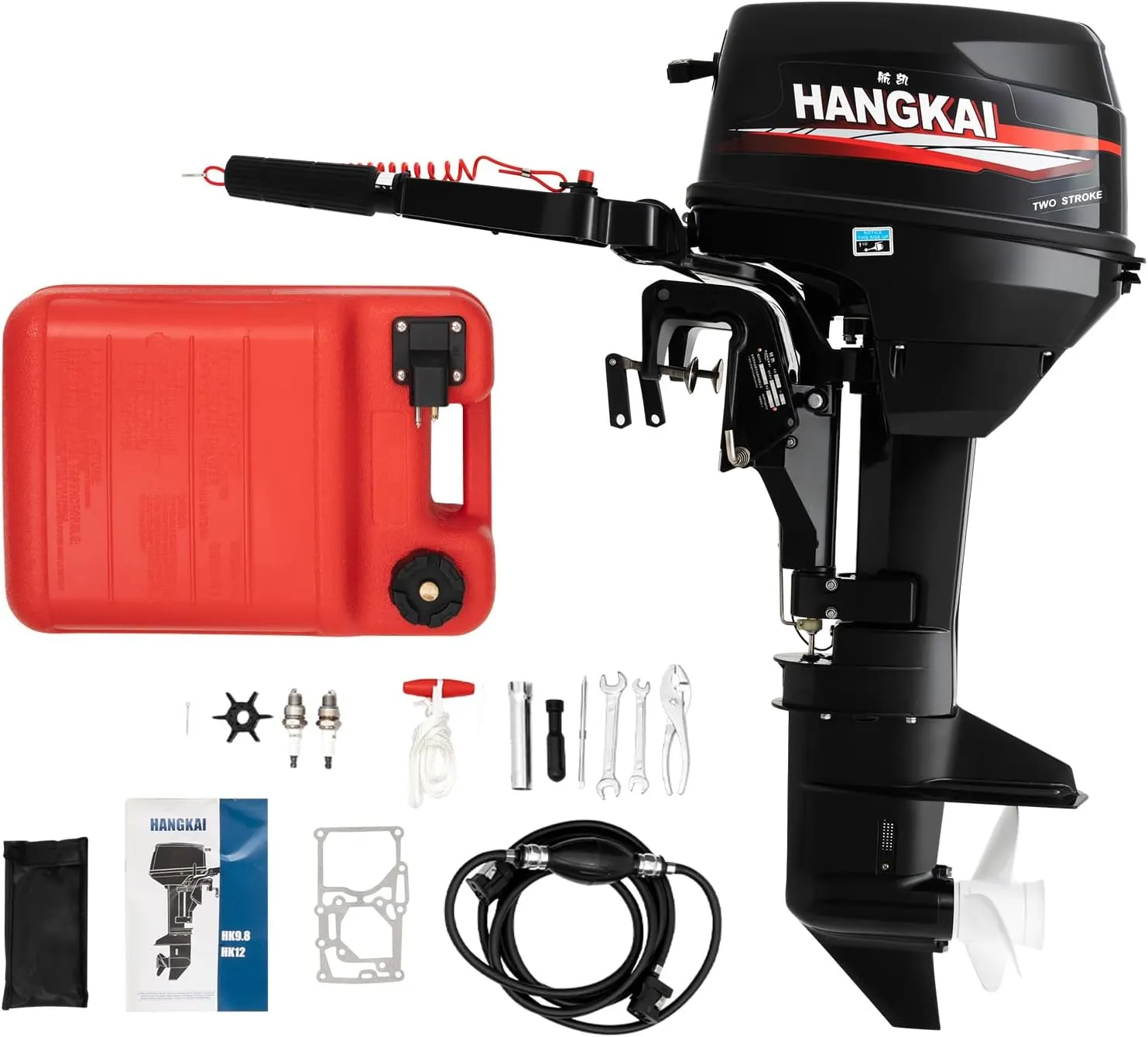

Package Included
1* Outboard Engine
1* Oil Pipe
1* Fuel Tank
1* English User Manual
1* Tool Kit
All Needed Accessories
