- 【High-quality Material】High-quality aluminum alloy, combined with spray painting technology, has excellent wear resistance, heat resistance, impact resistance, deformation resistance, and other properties. You can use it in water with confidence.
- 【Outstanding Performance】The 2-stroke 12hp engine can provide a speed of 8-30km/h to give you a comfortable and labor-saving sailing experience. Moreover, the three-blade propeller and streamlined design can reduce water resistance and provide greater power during operation.
- 【Multi-gear Cruise】 This product has three gears: forward, neutral, and reverse. By turning the throttle handle, you can achieve infinite speed change, or you can cruise at a constant speed so that you can enjoy different cruising experiences according to your needs.
- 【Convenient to Use】 The 6.34Gal external oil tank saves you the trouble of adding oil frequently, and the practical fuel hose makes it easy for you to fill it with gasoline at any time.
- 【High Safety】 The water cooling system helps cool the engine for longer life. Suspension tilt adjustment pins can be used to adjust the boat's sailing attitude to keep it sailing smoothly. The anti-swirl plate reduces swirl, allowing you to sail more safely. The emergency flameout rope can help you to turn it off quickly and use it more safely. The stern plate clamping bolt can securely secure it to the ship.
Description
This outboard motor is made of high-quality aluminum material, which is a good choice for you to enjoy your cruise. The excellent engine performance can bring you a comfortable sailing experience, as well as convenient ignition and flame failure devices to protect your safety. All you need to do is install it in the stern of your boat, and you can enjoy a fast and easy-to-operate water journey!
Details
Locking Handle: It locks the connection between the anechoic cover and the base and also makes it easy for you to open the housing and check the internal motor at any time.
Cooling Water Outlet: You can determine whether the water pump is working properly by checking whether it is producing water, to promptly repair the engine if it may malfunction.
Ergonomic Handle: The rubberized throttle control handle increases friction and has a non-slip effect, making it easier to use.
Fliter: The filter above the propeller helps to effectively filter impurities from the water, allowing the boat to sail more smoothly.
Application
This outboard engine is suitable for inflatable boats, iron boats, plastic boats, fiberglass boats, wooden boats, etc. with a stern plate height of 17.32 inches or less. It is widely used in fields such as fisheries, aquaculture, and outdoor exploration.
Specifications
Color: Black
Material: Aluminum Alloy, Rubber
Displacement: 169CC
Cylinder: 2
Horsepower: 12HP
Cooling System: Water-cooling
Ignition System: CDI
Control System: Tiller Control
Starting System: Manual Start
Trim and Tilt System: Manual Tilt
Gasoline Type: #92 Gasoline
Mixing Ratio: Gasoline: Two-stroke oil (25: 1 Break-in Period; 50: 1 After Break-in Period)
Rotation (r/min): 4500-5500
Speed: 8-30 km/hour(4.97-18.64 miles/h)
Gear Positions: F-N-R
Gear Ratio: 2.08(27:13)
Number of Propeller Blades: 3
Adaptive Transom Plate Height: ≤44cm/17.32inch
Suitable Tailboard Thickness: 2.5-4.5cm/ 0.98-1.77inch
Bore Stroke: 5*4.3cm/ 1.97*1.69inch
Recommended Propeller Range: 3-9 1/4"x8”
Fuel Consumption Rate: About 4.5L/1.18gal/h
Joystick Length: 35cm/13.78inch
Handle Length: 15cm/5.9inch
Propeller Diameter: 20cm/8inch
Oil-pumping Pipe Length: 3.05m/10ft
Standard Fuel Tank Capacity (External Oil Tank): 24L/ 6.34Gal
Silencer Cover Size(L*W): 40*26cm/15.75*10.24inch
Product Height: 102cm/40.16inch
Package Size: 107*67*41cm/ 42.13*26.38*16.14inch
Net Weight: 29.9kg/ 65.92 lbs
Gross Weight: 34.4kg/ 75.84 lbs

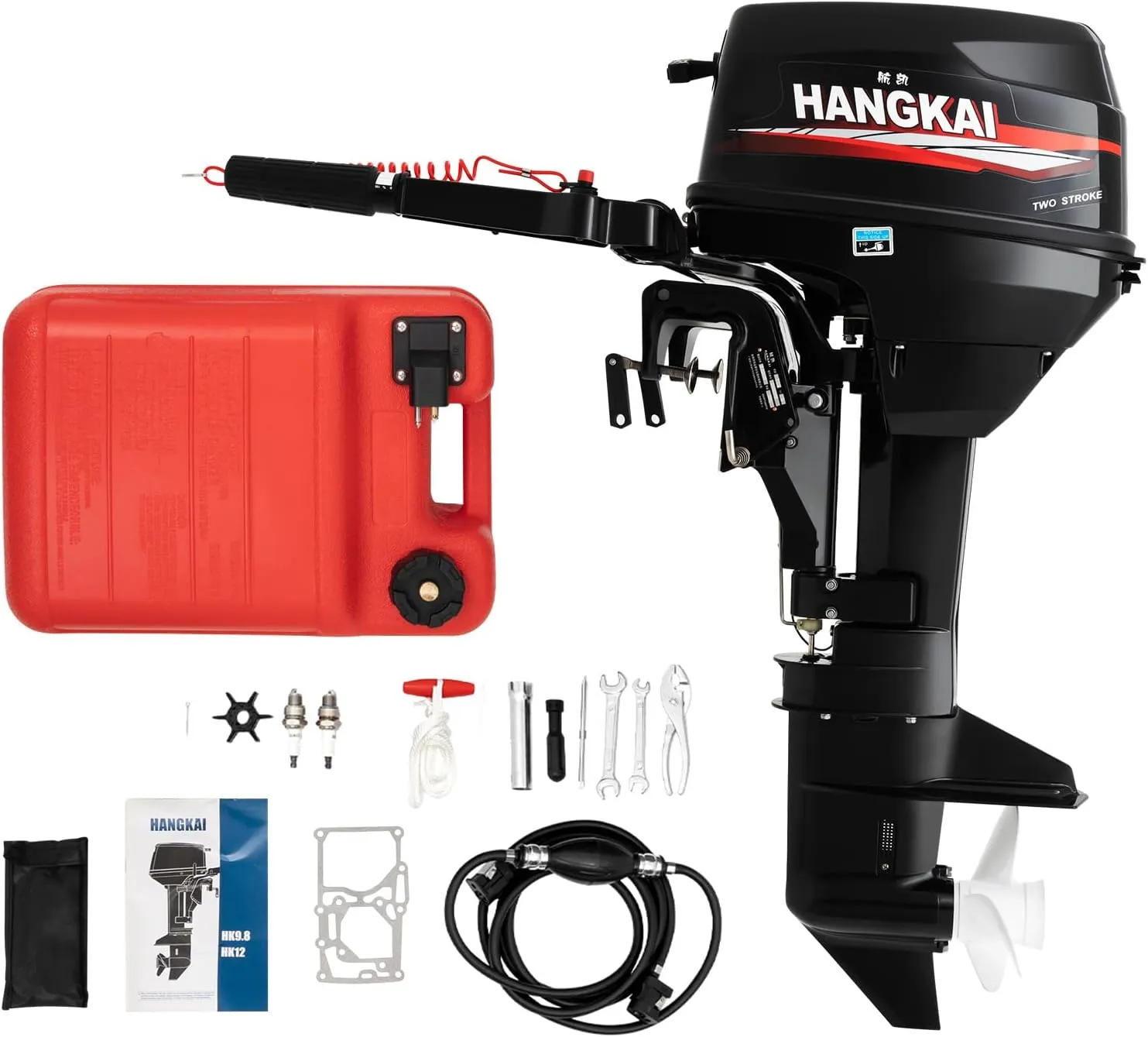

Package Included
1* Outboard Engine
1* Oil Pipe
1* Fuel Tank
1* English User Manual
1* Tool Kit
All Needed Accessories
Notes
1. Please note that this product must be started in water, and it is not allowed to start the engine on shore.
2. Please note that the two-stroke outboard engine must use a mixture of gasoline and two-stroke engine oil. In addition, gasoline and oil must be premixed and stirred evenly before being poured into the tank.
3. Please note that the running-in period is about 10 hours or one month. During the running-in period, do not drive with a high throttle.
4. The volume ratio of gasoline to oil during the running-in period of the new engine is 25:1. After the running-in period, the volume ratio of gasoline to oil is 50:1.
5. Replace the gear oil after the running-in period, and the second replacement time is after 100 hours or about 6 months;
6. When the outboard motor is started, loosen the exhaust screw on the fuel tank cover counterclockwise. The emergency flameout rope shall be inserted, and the other end shall be placed on the wrist or belt.
7. When the motor has no water outlet, please stop using it immediately, and then check the water pump impeller or check whether the water outlet is blocked.
8. Please note that the exact speed of travel depends on the shape of your boat, weight, water, wind, and other factors.
9. Please allow the slight color difference caused by the shooting light and 1-3 cm error due to manual measurement, and make sure you do not mind before ordering.
